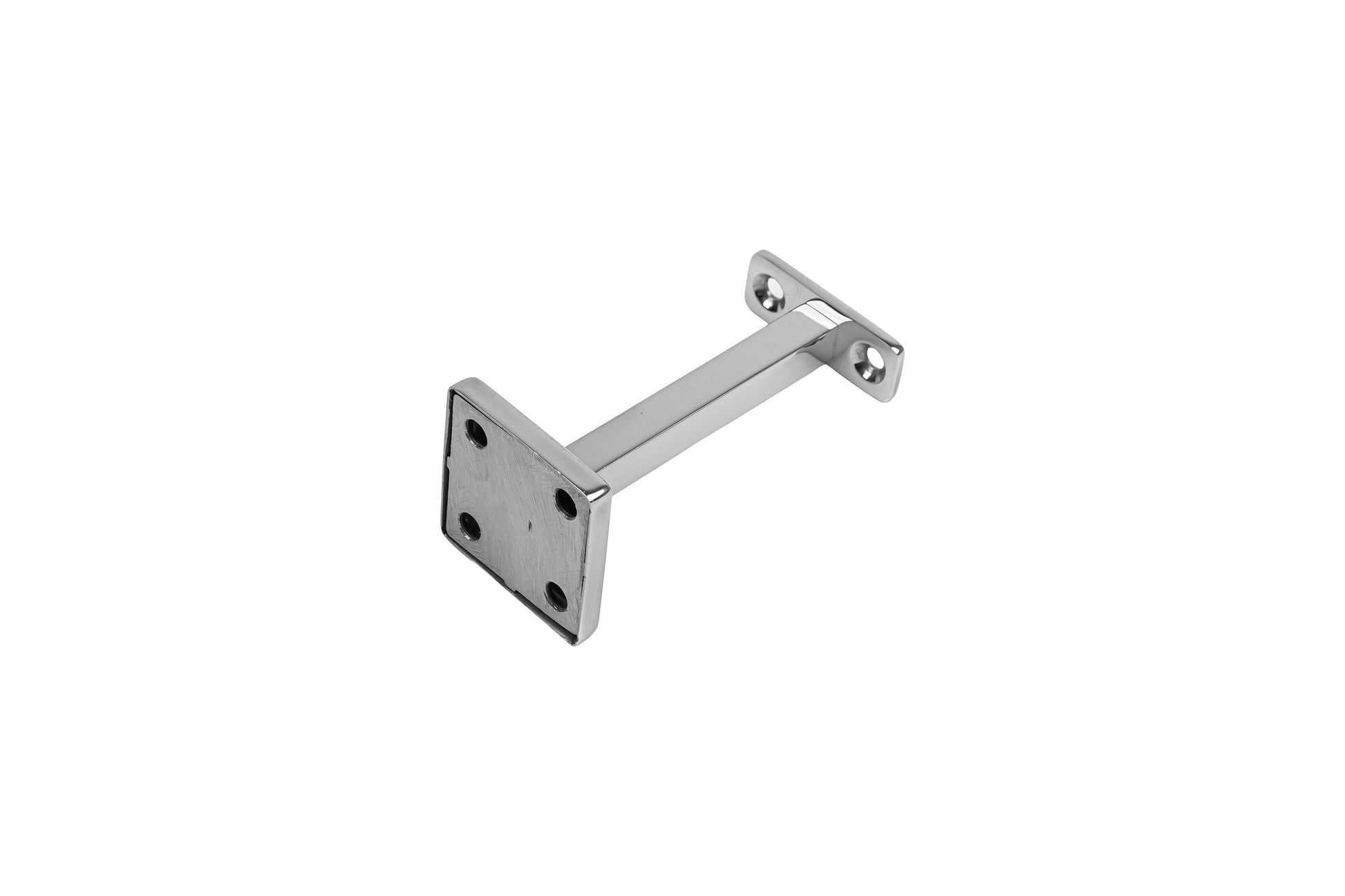

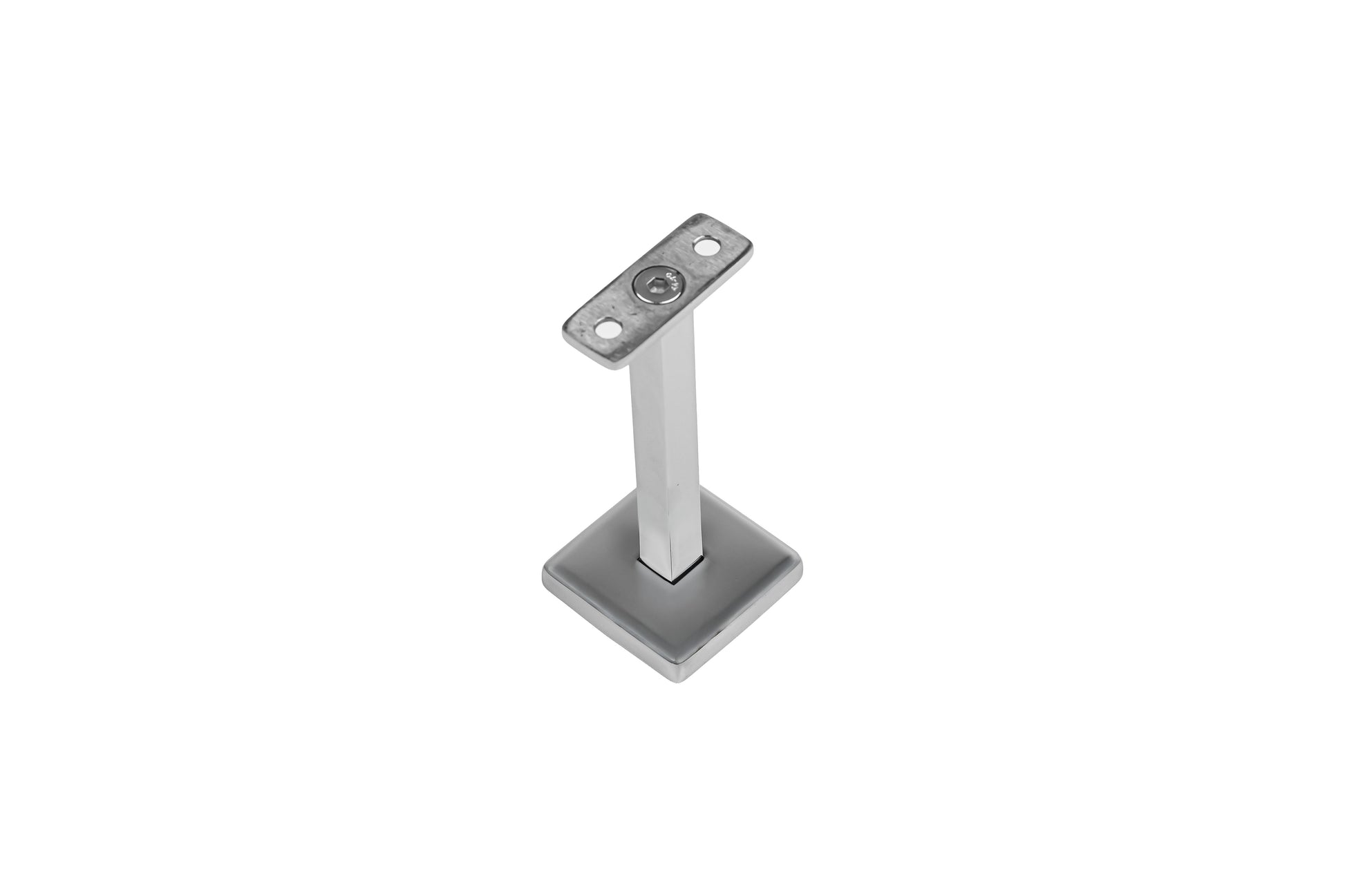

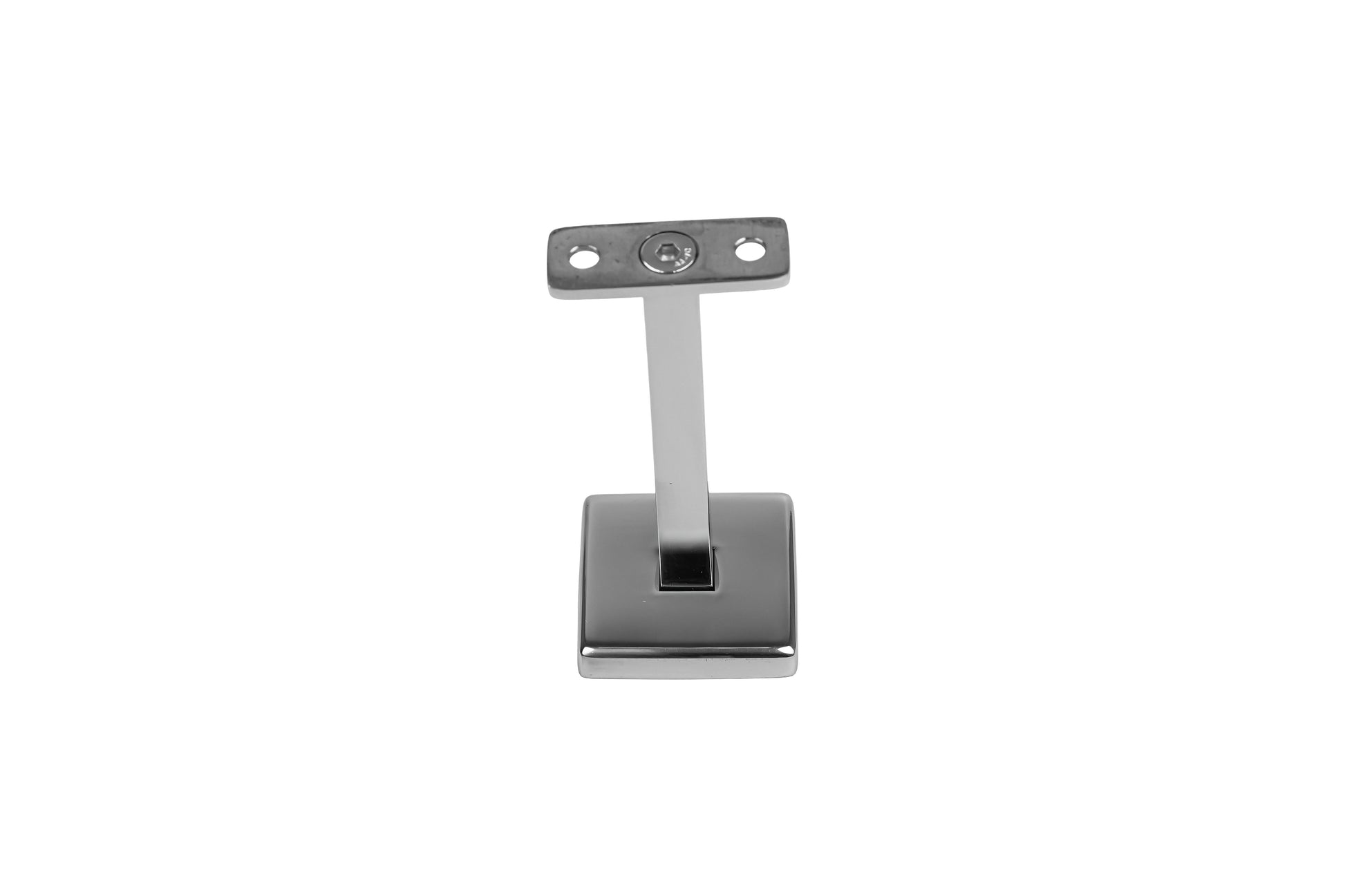

Top mounted square bracket

This 316 stainless steel handrail bracket is designed to mount on top of a wall and provide strong, reliable support for your handrail. It’s ideal for residential or commercial use and suitable for both indoor and outdoor installations. These brackets are also commonly used when an existing brick or block wall is too low to meet Australian balustrade height requirements. By adding a handrail on top using these brackets, you can easily bring the wall up to legal height while maintaining a clean, professional look. The bracket attaches to the wall using four screws, offering a sturdy and secure connection. It is available in both Round and Square styles to suit different handrails:

• The Square bracket fits 50mm × 25mm rectangular handrail

• The Round bracket fits standard round handrail

The bracket height is 110mm, measured from the bottom of the 50mm × 50mm base plate to the top of the flat saddle. Add your handrail height on top of this for the final installed height.

The handrail is fixed to the saddle with two screws:

• For stainless-steel railing, use self-tapping screws

• For timber handrail, use standard timber screws

Made from marine-grade 316 stainless steel, this bracket delivers excellent strength and corrosion resistance, making it ideal for coastal and outdoor environments.

Available in:
Brushed Finish or Mirror Finish (select from dropdown)
